Welcome to our exploration of the ceramic tile manufacturing process in this articles .

 Welcome to our exploration of the

ceramic tile manufacturing process in

this articles .we'll take you behind the

scenes of this intricate and fascinating

industry .

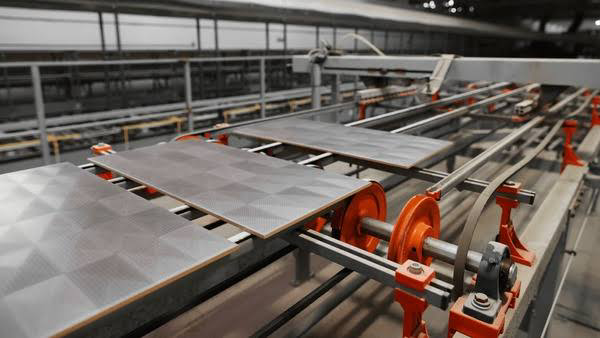

Tiles factory

ceramic tiles are versatile and durable

flooring or wall covering materials made .

from a mixture of clay minerals and

other additives they are crafted through

a meticulous manufacturing process that

involves shaping the clay mixture into

various sizes drying glazing and firing

in Kilns at high temperatures .

Tiles factory

ceramic tiles are renowned for their

aesthetic appeal as they can be produced

in a wide range of colors patterns and

textures allowing for Endless design

possibilities .

they are commonly used in residential

commercial and Industrial settings due

to their durability ease of Maintenance

and resistance to water stains and wear

whether used in kitchens bathrooms

living areas or outdoor spaces ceramic.

tiles provide a stylish and functional

solution for enhancing the beauty and

functionality of spaces

to create beautiful ceramic tiles it all

starts with the finest raw materials

various types of clay carefully selected .

for their properties form the foundation

of these Exquisite tiles additionally

additives like feldspar quartz and

pigments are introduced to enhance their

strength and aesthetic appeal .

The newly shaped tiles enter the drying

phase initially they are left to air dry

naturally allowing excess moisture to

evaporate however to prevent cracking

and warping controlled drying becomes

Paramount drying Chambers or Kilns

provide the perfect environment for this

crucial process .

next comes the glazing process where

ceramic tiles Truly Come to Life glaze a

liquid mixture of minerals is .

meticulously applied to the dried tiles

this step enhances their appearance

providing a protective layer that seals

the surface and adds unique patterns and

colors.

thank you

to achieve their remarkable durability

the glazed tiles undergo a firing

process in Kilns these Kilns expose the

tiles to extremely high temperatures .

transforming them into robust

long-lasting materials different types

of Kilns such as tunnel Kilns or roller

Hearth Kilns may be used depending on

the production requirements .

ensuring exceptional quality is at the

core of ceramic tile manufacturing

sorting and grading systems are employed

to carefully assess each tile's quality

size and appearance rigorous inspection

processes guarantee that only the finest

tiles make it to Market meeting the

industry's stringent standards .

with quality assured it's time for

packaging and distribution Special Care

is taken to package the tiles securely

protecting them during transportation

from there they embark on their journey

through distribution channels reaching

various markets around the world .

and there you have it the intricate

process of ceramic tile manufacturing

from raw materials to the finished

product every step is carefully

orchestrated to create tiles that blend

Artistry durability and functionality we

hope you've enjoyed this .

thank you for watching subscribe our

channel to see more see you on the next .

modern floor tiles are available in many

different shapes and sizes to give a

very distinctive personality to the feel

of the room today we're going into two

factories to have a look at the way that

floor tiles are made there are two types

of tiles ceramic tiles and porcelain .

tiles both are made from a mixture of

different clays and sand the raw

materials are mined in a quarry and come

into the factory in a very rough form

they're put into a crusher machine which

breaks up the larger pieces the raw .

materials are sent by conveyor to huge

milling machines the clay and sand are

ground to very tiny particles and mixed

with water and other additives to create

a mixture that is suitable for making

floor tiles in the vitro factory they

produce porcelain tiles to make

porcelain tiles cement in the form of

andesite is added to the mixture which

is fit to a screen feeder this machine

is very much like a cheese grater a

rotating screw inside the machine .

presses chunks of the clay through holes

at the bottom of the feeder the clay is

fed to the extrusion machine inside the

machine a vacuum removes all air from

the clay mix and a large screw presses

the clay through a metal die and a sheet

of material that will form the tiles is

punched out of the machine this process

is known as extrusion .

the tiles are cut to size and moved on

the line to the next stage of production

next door to the vitro factory is the

Pegasus factory which produces ceramic

tiles ceramic tiles are produced .

slightly differently the raw materials

are milled to very fine powder mixed

with water and the mix is pressed into

the shape of a tile each factory uses .

800 to 900 tons of raw materials per day

and produces tiles up to 600 millimeters

square both porcelain and ceramic tiles

are passed through a drying process to

remove some of the moisture from the

material the clay is quite supple as it

goes into the dryer the drying process .

gives the tile more strength the patent

mana tile is printed onto the surface to

prepare them for printing both porcelain

and ceramic tiles passed through a spray .

tank which sprays a primer coating onto

each tile printing is done in two ways a

screen printing method is used on some

of the lines here we can clearly see the

different colors being applied to the

tiles as they pass through the screen

printing section of the production line

a second method utilizes a very modern.

inkjet printing machine to apply the

pattern to the tile this machine .will

print any design that is entered into

the computer onto the tiles a protective

top coating of glaze is sprayed onto

each tile this turns white shortly after

it comes out of the spray tunnel. but

will become transparent as the time

passes through the firing process in a

kiln the kiln is a long tunnel heated by

gas heaters through which each tile

passes in a process known as firing in

the first section of the kiln the tile.

is dried at low temperature to remove

water from the clay .if the tiles were

subjected to very high temperatures in

this first phase the water in the tiles.

turned to steam and many of the tiles

would explode once the tile has been

dried sufficiently the temperature in

the kiln is raised to one thousand one

hundred and eighty five degrees.

centigrade this is where the tile is

fired to bake the Clay's and other

materials. that are in the body of the

tile a cooling section at the end of the

tunnel cools the tiles at a uniform rate

before they come out of the kiln this is

done to prevent warping or cracking of

the tile if there was suddenly exposed

to the cool air temperature outside the

kiln while they were very hot the tiles

may walk or crack which is caused by

thermal shock each tower passes tests of

strength size and geometrical precision

and the towers moving to the stacking

machine here the computer sorts each

tile into its own quality grading a

grade tiles will be put together and V

grade tiles will be automatically sorted

into a different stack at very high

speed these factories can each produce

up to half a million tiles every day and

are open for 24 hours a day seven days a

week so quality machinery and personnel

are important to prevent breakdowns

processes are becoming highly automated

in South African factories to maintain

efficiency at a high level without the

need to stop for breaks

this robotic forklift uses a system of

lasers that are reflected around the

factory by special panels these laser

guided vehicles move the boxes of tiles

to the next stage of production very

efficiently in this large factory both

ceramic and porcelain floor tiles

provide a tough and attractive finish to

bathrooms kitchens and the rest of the

home .

Tiles factory

modern home design techniques have

called for modern tile design these

factories utilize the latest production

techniques to produce quality floor

tiles for the South African and

international markets
